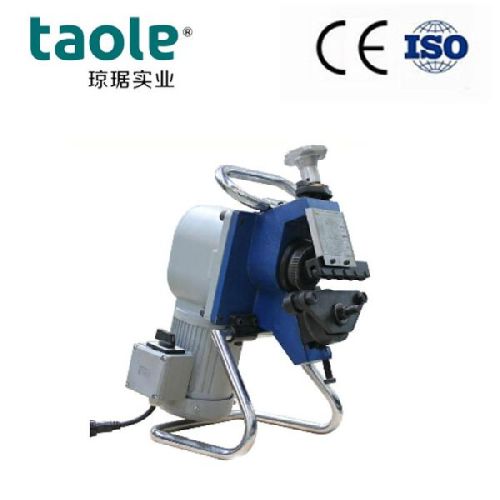

Plate Edge Beveling Machine, Brand Name : Taole

₹ 2.01 Lakh / Set

MOQ1 Set(s)
Brand NameTaole
CertificationCE, ISO9001:2008
ConditionElectic
Rated Power400W
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerPlate and Pipe cold beveling machine
Brand NameTaole
CertificationCE, ISO9001:2008
Country of OriginAC380V 220V 50Hz
ConditionElectic
Rated Power400W
Total Carbohydrate1 year Warranty
After-Sales Service ProvidedSpare parts and maintanance
Model NumberGMB-6D
Plate width4-16mm
Bevel Angel25,30,37.5,45degree

This series machine is mainly for Metal Plate Edge Beveling & Chamferring for welding preperation.It is widely used in some aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc.
Note: This model with multi function to Process both Metal Plate and Pipe /tube
Model No.:GBM-6D
Power Supply:AC 380V/220V 50Hz
Motor Power:400W
Clamping Plate Thickness:4-16mm
Min.Processing Plate Width:â�¥55mm
Net Weight for Machine:33kg , 39KG (Including Car)
Beveling Width:Single beveling width: 6mm
Max. beveling width: 8mm
Beveling Angle:25Â°, 30Â°, 35Â°, 40Â°, 45Â°( Match bevel angle)
Beveling Speed:1.2 - 1.8m/min
Packaging Details
1. 540*640*740mm,N/W:33KG, G/W:55KG
2.540*640*740mm,N/W:45KG,G/W:60KG (Including Car)
Range of application:
This type machine, which is mainly used in aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc.
