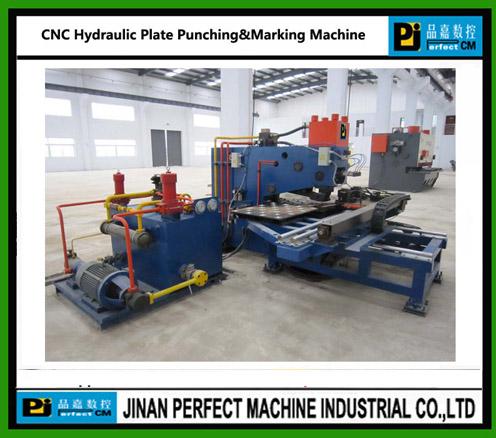

Plate Punching Machine, Certification : ISO9001

We are offering punching machine.
applicable industry:
special cnc machine for punching and marking of steel plates in the field of steel tower industry and steel structure. It is also used to punch and mark of steel plates of other industries.
specifications:
model pp103 pp104
max size of work piece l���w(mm) 1500���800 1500���1000
max. Diameter of punching (mm) ���26 ���26
plate thickness of punching (mm) 6-25 (q 235) 6-25 (q 235)
punching force (kn) 1000 1000
marking force (kn) 800 800
min. Distance between hole and plate edge (mm) 25 25
dimensions of characters (mm) 14���10���19 14���10���19
quantity of character 12 12
die-stations 3 3
precision accordance with gb2694 accordance with gb2694
programming mode input by keyboard, rs232 interface, floppy disk and usb interface input by keyboard, rs232 interface, floppy disk and usb interface
overall dimensions (l���w���h ) mm
3200���3000���1900 3500���3000���1900
any need for machines, please inquiry us.
Best regards,
perfectcm
