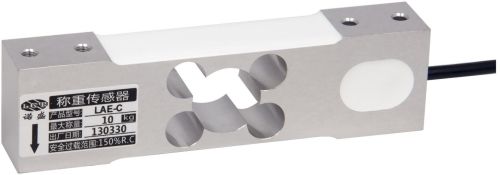

LCT Platform Scale Load Cell

We are offering platform scale load cell
1、features
material:aluminum alloy
mainly used for price computing scales,counting scales,platform scales etc.
Max.platform size:400*400mm
2、specifications
rated loading:20,40,60,100,120kg
dimension;25*40*150mm
rated output ：2.0mvv±5%
zero balance：±0.05r.o.
non-linearity：±0.015%r.o.
hystereis,repeatability：±0.01%r.o.
creep in 30 min.：±0.02%r.o.30min
temp. Effect on output：±0.02%r.o.10℃
temp.effect on zero：±0.02%r.o.10℃
input resistance：405±10ω
output resistance：350±3ω
safe overload：150%.r.c
insulation resistance：≥5000mω
compensated temp. Range：-10to+40℃
operating temp. Range：-20to+60℃
excitation,recommended：(5-12)vdc
cable,length：φ5mm*1.5m.
