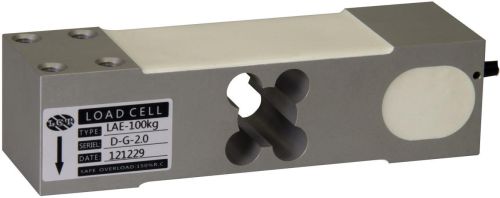

LCT Platform Scale Load Cell

We are offering platform scale load cell
1、features
material:aluminum alloy
mainly used for price computing scales,counting scales,platform scales etc.
Max.platform size:400*500mm
2、specifications
rated loading:60,100,200,300,350,500kg
dimension:40*45*150
rated output:2.0mvv±5%
zero balance:±0.05r.o.
non-linearity:±0.015%r.o.
hysteresis,repeatability error:±0.01%r.o.
creep in 30 min.:±0.02%r.o.30min
temp.effect on output:±0.02%r.o.10℃
temp.effect on zero:±0.02%r.o.10℃
input resistance:405±10ω
output resistance:350±3ω
safe overload:150%.r.c.
insulation resistance:≥5000mω
compensated temp. Range:-10to+40℃
operating temp. Range:-20to+60℃
excitaction,recommended:5-12vdc
cable,length：φ5*1.5m.
