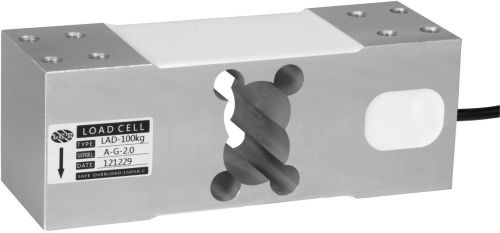

LCT Platform Scale Load Cell

We are offering platform scale load cell.
1、features
material:aluminum alloy
high accuracy,oiml r60 approved.
Mainly used for price computing scales,counting scales,platform scales etc.
Max.platform size:800*800mm
2、specifications
rated loading:60kg~1000kg
dimension:64*60*174mm
rated output:2.0mvv±5%
zero balance:±0.05r.o.
non-linearity:±0.015%r.o.
hysteresis,repeatability:±0.01%r.o.
creep in 30 min.:±0.02%r.o.
temp. Effect on output:±0.02%r.o.10℃
temp. Effect on zero:±0.02%r.o.10℃
input resistance:405±10ω
output resistance:350±3ω
safe overload:150%r.c.
insulation resistance:≥5000mω
compensated temp. Range:-10to+40℃
operating temp. Range:-20to+60℃
excitation ,recommended:5-12vdc
cable,length:φ5mm*2m.
