Platform Scissor Lift

We are offering platform scissor lift.

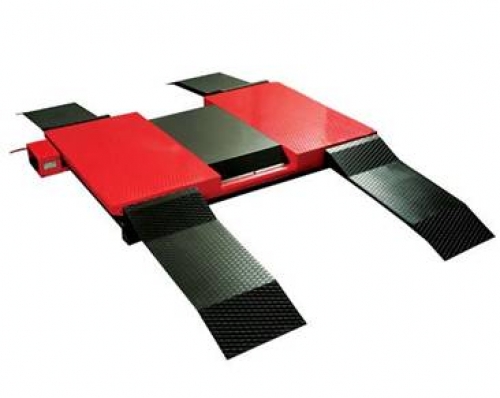

The epl 2000 is designed to definitively resolve the problems of working on tyres of any type of truck or van. The lifting system is entirely pneumatic with a mechanical safety device that prevents accidental total descent (even without air pressure). The lift has a solid structure that ensures the complete stability of the raised vehicle. The climbing ramps can be removed to facilitate balancing operations with wheels mounted, and it has a stopping level to assist operators positioning the vehicle before lifting. The pedal control allows the platform to be stopped at the required height when moving either up or down.
equipped with four arms (optional).



technical specifications

max. Capacity 3000 kg
service pressure 10-12 bar
net weight wo ramps 320 kg
ramps 150 kg
max. Raise 400mm



measurements


w x l x h : 1370x2400x140mm
