Platform With Ramp

Get Latest Price

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Indman Scale Corporation

Baranagar, Kolkata, West Bengal

View Number

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 2002

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

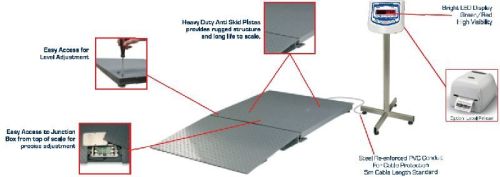

Heavy Duty platform scales are industrial grade mild steel construction units, which are built to last and perform with speed. Platforms are supplied complete with the Ti10 series indicator or Other indicators of choice. The displays are mounted on separate pole for safety and comes with 3m standard wire length. Available 4 loadcells model in a variety of size configurations and option of custom size. Multiple indicator options available to suit applications like piece counting Ideal for industrial weighing, Heavy duty weighing application, steel mills, Coil weighing and other industrial weighing requirements

Feature

High precision 4 load cell
Ramp for easy movement of object
Large 1" LED display for excellent visibility
Heavy duty mechanical Structure
Net gross / piece counting function
Standard accumulation function
6 Volt inbuilt rechargeable battery backup
Designed using thick chequard plates
Suitable for General Weighing, heavy material, Freight, Industry
Optional RS232 port
Keyboard calibration facilities
Extended remote display facilities
Low battery indicator cum shut down
Auto stand by mode for enhancing battery life

Model No.	Capacity	Graduation	Pan (mm)
PLAX-TP	1000 Kg	100 gm	1000 X 1000
PLAX-TP	1500 Kg	200 gm	1000 X 1000
PLAX-TP	1000 Kg	100 gm	1200 X 1200
PLAX-TP	1500 Kg	200 gm	1200 X 1200
PLAX-TP	2000 Kg	200 gm	1200 X 1200
PLAX-TP	3000 Kg	500 gm	1200 X 1200
PLAX-TP	1000 Kg	100 gm	1000 X 1500
PLAX-TP	1500 Kg	200 gm	1000 X 1500
PLAX-TP	3000 Kg	500 gm	1500 X 1500
PLAX-TP	5000 Kg	500 gm	1500 X 1500
