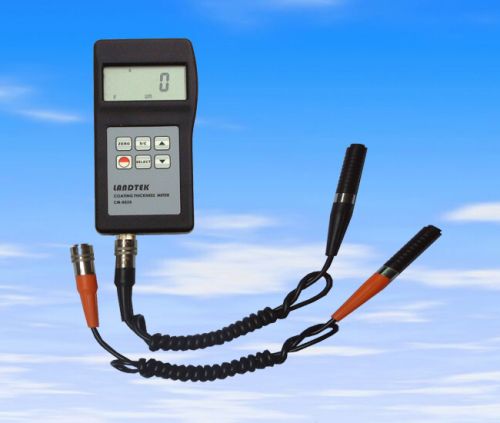

We are offering plating thickness gauge ,
application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Model: cm8829s
with separate probe(s)
operating principle: magnetic induction/eddy current (f/nf)
magnetic induction: to measure the thickness of nonmagnetic coating layers on magnetic substrate
eddy current: to measure the thickness of non-conductive coating layers on non-ferrous substrate
measuring range:0-1250um/0-50mil
resolution: 0.1/1
accuracy: â±1-3%n or â±2.5um
min. Measuring area:6mm
min. Sample thickness:0.3mm
battery indicator: low battery indicator
metric/ imperial: convertible
power supply: 4x1.5v aaa(um-4)battery
auto power off
operating conditions:0-+45â��(32â��-104â��),â�¤90%rh
dimensions: 126x65x27mm
weight: 81g(not including battery)
optional accessories: other range 0-200um to 15000um
optional accessories: rs-232c cable & software:
1.usb adaptor for rs-232c
2.bluetooth interface.
