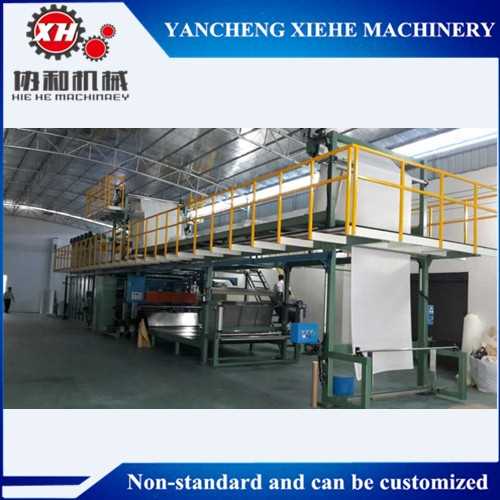

PLC Intelligent Flame Laminating Machine

Usage:
1. The flame lamination’s process can be understood as the follows:
the sponge is burned by linear gas burners, and the sponge is transformed into adhesive film. The adhesive film combines the upper fabrics with the lapping cloth, which achieves permanent lamination.

2. To laminate foam with woven or non woven fabrics, knitted, natural or synthetic fabrics, velvet, polar fleece, corduroy, leather, synthetic leather, pvc, etc.

technical datas :
1. effective width 2200mm
2. burner  width  2200mm
3. press roller’s diameter (surface with teflon) φ265mm
4. gas for combustion 2.5-3.5m2min
5. designed speed 10-55mmin
6. laminating speed 15-45mmin
7. installed capacity   about 47kwa
8. power 380v 50hz three-phase
9. weight of the machine about 13700kg
10.  dimension (l*w*h) about 23625*3710*4500mm

introduction about flame lamination
the flame lamination’s process can be understood as the follows:
the sponge is burned by linear gas burners, and the sponge is transformed into adhesive film. The adhesive film combines the upper fabrics with the lapping cloth, which achieves permanent lamination.
