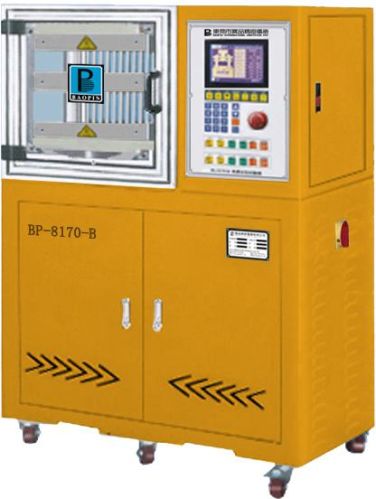

PLC Lab Hydraulic Tablet Press Machine

PLC lab hydraulic tablet press machine This hydraulic tablet press machine using mobil 32 # antifreeze hydraulic oil, adopt the forming mold and precision guide post, divided into upper and lower double plates frame structure, the upper plate heating, the lower plate cooling This PLC control lab tablet hydraulic press machine is equipped with PLC program control color touch screen. The human-machineinterface operating system can set pressure, temperature, time and exhaustingfrequency. The vulcanization process is instantly displayed and monitored. Themould pressing procedure is set to be completed fully automatically. Parameters: Capacity 20/30/50T (optional) Temperature range Normal temperature ~ 300 ℃ Pressing plate size   300 X 300 X 50 mm Distance of pressing plate 100 mm Oil pressure medium Mobil 32# antfreeze hydraulic oil Power supply 3 ∮, five lines Specification: Controller: PLC programmable color touch screen has human-machineinterface. All the operating parameter can  be set and controlled at will. Mouldpressuring process and vulcanization curve can be displayed                              dynamically. Heating method: Electro-thermal tube Cooling method: Tap water cooling Working layer: One layer. The upper die plate and lowerdie plate both have heating and cooling functions.
