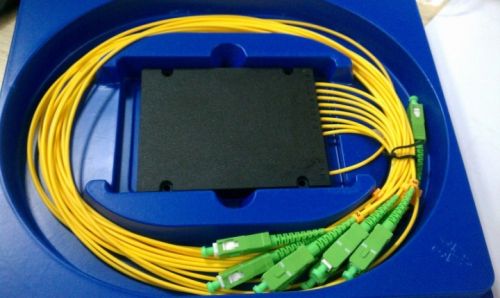

PLC Splitter

We are offering Plc Splitter with Low Insertion Loss and Wide Wavelength Range, Suitable for Fttx Systems.
Features:
Compact design
Low insertion loss and PDL
High return loss and channel counts
Uniform power splitting
Wide wavelength range
Large operating temperature range
Customized packaging and configuration are accepted
Good environmental and mechanical stability
Specification:
Maximum insertion loss: 6.87.0 (1 x 4), 10.210.5 (1 x 8), 13.213.5 (1 x 16), 16.216.5 (1 x 32) and 19.619.9dB (1 x 64)
Typical insertion loss: 7.0 (1 x 4), 10.5 (1 x 8), 13.5 (1 x 16), 16.5 (1 x 32), 20dB (1 x 64)
Uniformity: 0.5 (1 x 4), 0.8 (1 x 8), 0.8 (1 x 16), 1.0 (1 x 32) and 1.5dB (1 x 64)
Polarization dependent loss: 0.2 (1 x 4), 0.2 (1 x 8), 0.2 (1 x 16), 0.3 (1 x 32) and 0.3dB (1 x 64)
Return loss: 55dB
Directivity: 55dB
Operating temperature: -40 to 85°C
Storage temperature: -40 to 85°C
Fiber type: SMF-28e
Sealed dimensions: 40 x 4 x 4 (1 x 4), (1 x 8) and (1 x 16), 50 x 7 x 4 (1 x 32) and 60 x 12 x 4mm (1 x 64)
Packing dimensions: 100 x 80 x 10 (1 x 4), (1 x 8), 120 x 80 x 18 (1 x 16), 140 x 115 x 18mm (1 x 32), (1 x 64)
Applications:
FTTX systems
LAN, WAN and metro networks
Analogdigital passive optical networks
CATV networks
Test equipment
Optical signal distribution
