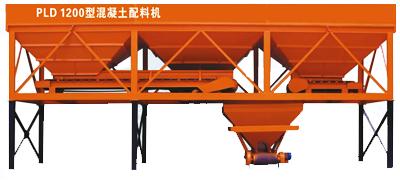

Pld Concrete Batching Machine

Prouduct models 800 800s 800ds-iii 1200q-iii pl1200y-iv pl1200-iii pl1200y-v pl1600q plz1600-ii pl1600y pl2400q pl3200q-iii(iv)
metage hopper nominal capacity (m3) 0.8 0.8 0.8 1.2 1.2 1.2 1.2 1.2 1.6 1.6 2.4 3.2
storage hopper volume (m3) 2*2 2*2 3*2.2 3*4 4*2.3 3*3 4*3 3*3 2*8 3*3 3*12 3*20
productivity (m3/h) 48 48 48 60 60 60 60 60 60 60 120 100
batching precision (%) ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2%
max. Metage value (kg) 1500 1500 1500 2000 2000 2000 2000 3000 3000 3000 4000 5000
no. Of aggregates (units) 2 2 3 3 4 3 4 3 2 3 3 3
loading height (mm) 2300 2400 2700 2400 2300 2400 2400 3275 3000 3000 1500 1500
measuring mode eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale eletronic scale
batching mode electirc belt conveyor electirc belt conveyor electirc belt conveyor(1 shaped) pneumatic(1 shaped) electirc belt conveyor(yshaped combination type) electirc belt conveyor(1 shaped) electirc belt conveyor(1 shaped) pneumatic(1 shaped) pneumatic pneumatic(1 shaped) pneumatic(1 shaped) pneumatic(1 shaped)
discharge mode electirc belt conveyor electirc belt conveyor electirc belt conveyor(t shaped) electirc belt conveyor(1 shaped) electirc belt conveyor(t shaped) electirc belt conveyor(t shaped) electirc belt conveyor(t shaped) electirc belt conveyor(1 shaped) electirc belt conveyor(t shaped) electirc belt conveyor(1 shaped) electirc belt conveyor(1 shaped) electirc belt conveyor(1 shaped)
total power (kw) 6.6 6.6 6.6 6.0 11 10.6 14.5 7 12 13 11 11
overall mass (kg) 2350 2500 4000 4200 4500 3760 5700 7000 4000 4820 9000 10500
overall dimensions (l*w*h) 5600*1560*2760 6200*1560*2810 8400*1560*2940 9270*2115*2900 7300*4600*2800 8390*2000*2800 11200*2000*2800 10200*2300*2600 7900*5500*3300 9500*2300*3300 10200*3300*3800 10200*3300*4200
