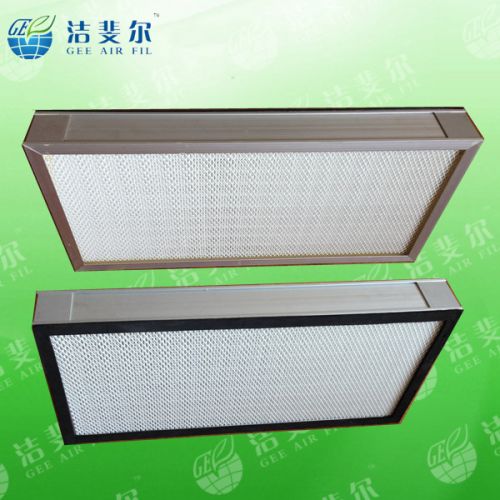

Pleated Fiberglass Paper Mini Pleat Hepa Air Filter

We are offering pleated fiberglass paper mini-pleat hepa h14 air filter for cleanroom.
High efficiency ( capturing at 0.3microns particles )
low resistance
thin thickness (minimum: 25mm)
light weight
easy to install
1. Application: applied to the ffu, cleaning equipments , blow of the clean room. And also be widely used in the electronic, semiconductor, hospital and food industry
2. Type: high efficiency foldaway filter
3. Frame: aluminum or galvanized frame
4. Separation material：hot melt adhesive
5).media: fiber glass paper 0.12micron
6. Efficiency : h13
7. Final resistance : (suggest) 600pa
8. Max. Air flow: 125% of the rated air flow
9. Temp. Resistance : 80℃
10. Humidity: ≤80%rh
dimension(l*w*t) mm rated air flow (m3h ) initial pressure drop(pa) efficiency (%) material
frame cartridge separator sealant
305*305*35 110 99.99 (sodium flame) aluminum
galvanized steel fiberglass paper hot melt glue polyurethane glue
610*610*35 450
915*610*35 680
305*305*50 150
610*610*50 700
915*610*50 1100
305*305*69 250
610*610*69 1000
915*610*69 1500
1170*570*69 1800
1220*610*69 2000
305*305*80 300
610*610*80 1300
