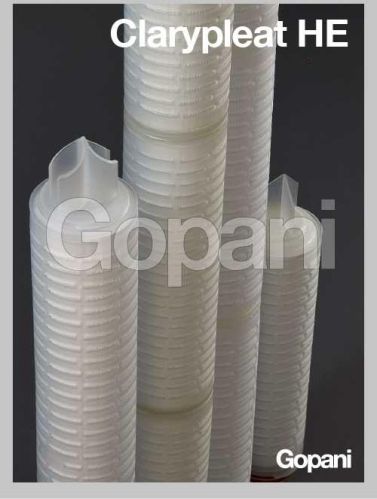

Pleated Filter Cartridge

Listing ID #2028022

Gopani clarypleat - he pleated cartridges are a performance advancement to string wound or spun filters. These cartridges are economical, multi-use, premium quality products that are available in various micron ratings ranging from 0.2 micron to 50 micron nominal. Clarypleat - he pleated cartridges contain no surfactant or binder that can break down, leach out, or permit the typical problems of channeling and media migration. Maximum effective filtration surface area of 0.5 m² per 10" allow for high flow rates at reduced pressure loss as well as higher dirt holding capacity resulting in lower operating cost. Clarypleat - he pleated cartridge filters may be used as either as pre filters or as final filters for bulk filtration or point-of-use filtration. They are most appropriate for use when high efficiency filtration and economy are crucial.

Benefits :

• Micron ratings from 0.2 to 50 microns
• Micron removal efficiency of 98%
• All polypropylene construction
• more surface area of media offer higher dirt holding capacities
• Polypropylene fiber construction offers a wide range of chemical compatibility
• Constructed by advanced thermal welding techniques to seal all components

Specification :

• M.o.c - pleated depth polypropylene (pp)
• Size - 10" to 60 "filter cartridge length 70 mm +- outer diameter.
• Micron ratings - 0.2, 0.45, 1, 3, 5, 10, 20, 50 micron operating condition - max.
• Forward pressure - 2.4 bar at 20 degree c - max. Differential pressure - pleated pp - 2.4 bar @ 55 degree c
• Temperature rating - pleated pp - 55 degree c
