Plug/Wick/Measuring/Dosing Cup Pressing Machine

Get Latest Price

Bottle Height :300mm* Maximum
Speed :Max. 160 Bottles per minute depending on Bottle and Cap Size
Electrical :415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power :2.0 H.P.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

BROTHERS PHARMAMACH (INDIA) PVT. LTD.

GIDC, Rajkot, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1965

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Bottle Size :Diameter Up to 85mm* or other Shape bottle with proper base
Electrical :415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Bottle Height :300mm* Maximum
Speed :Max. 160 Bottles per minute depending on Bottle and Cap Size
Note :Shape of Measuring cup must be straight required and should not get inser
Power :2.0 H.P.
Measuring Cup / Cap Size :upto 32mm, Actual Samples required
Overall Dimensions :2000 mm (L) x 1050 mm (W) x 2000 mm (H)
Conveyor Height :850-900 mm

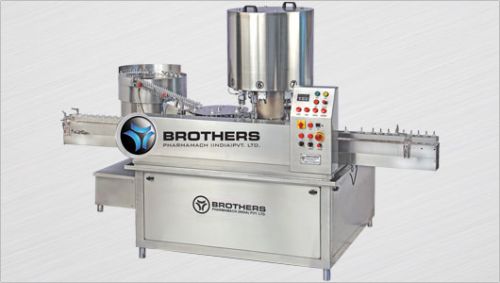

CAPRESS-160R-PNP- Auto. Rotary Pick N Place type Plug/Wick/Measuring/Dosing Cup Placement-Pressing Machine

The Automatic Rotary Pick N Place type Wick, Plug, Measuring/Dosing Cup Placement / Cap Pressing Machine Model CAPPRESS-160R-pnp. Machine is suitable for Round or other shape of Glass, Plastic, PET, LDPE, HDPE Bottles with maximum speed of 160 Bottles per minute depending on Bottle Diameter, Bottle Height, Bottle Shape and Wick/Plug/Measuring Cup / Cap Size.

Machine with Pneumatically operated Gripper type capping head system for uniform Placement and Pressing on bottles.The Machine is equipped with Orientation type Cap Feeder or Vibratory type Bowl Feeder depending on Plug/Cap shape and size for continues feeding for online operation on any liquid of powder filling line. Machine suitable for various sizes of Bottles and Plug/Wick/Measuring/Dosing Cup with the help of change parts. Specially Machine construction in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures.

SPECIAL/OPTIONAL* FEATURES :

Pneumatically operated Gripper type capping head
No Bottle - No Cup / Cap System
No Plug / Measuring Cup / Cap - Machine Stop System
Machine construction in Stainless Steel Finish
Infeed and Exit Star Wheel with Overload Clutch System to avoid Bottle breackage
Single Drive Synchronizing Total Operation of Bottle Feeding, Bottle Holding Belt and Top Holding / Pressing Belt System
Measuring Cup / Cap Feeder with Variable Speed System for feeding control of caps.
Minimum Change Over and Setting time
Hopper can be completely dismantle for easy cleaning
Various safety features including Clutch system to avoid Bottle Breakage
Single Drive synchronizing operation of Conveyor and Star Wheel
Minimum Change over time

Please ensure that the Measuring/Dosing Cup design should be straight or does not have bigger mouth diameter compare to top dia. to avoid insertion of cup in each other during the movement in cup feeder which block the movement. Kindly arrange to send us all your Sample Bottle and Measuring Cup for evaluation at our end.
