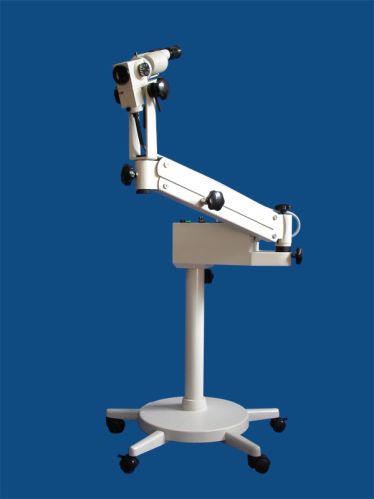

Plus Colposcope For Gynecology

We offer plus colposcope for gynecology. High-contrast image with great depth of field, excellent stereoscopic relief
brilliant brightness illumination, no heating
twin-bulbs and pantographic arm, suitable for office, hospital and training.
specifications
microscope
binoculars straight f'=160 mm
objective f'=300 mm
eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
diopter adjustment -5d to + 5d
magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
total magnifications 2.8x, 4x, 7x, 11.5x, 17x
visual field 80 mm to 12.5 mm
interpupillary distance 55mm to 75 mm
focusing macro- with stand movement; micro-range of 40 mm with manual adjustment of rack and pinion
working distance 295 mm
illumination
type coaxial illumination by optical light-guide system
cold light source halogen lamp, 15v150w, twin bulbs
illumination control 3 steps
field of illumination 80 mm
power supply ac 110v60hz 220v50hz c 200w
light intensity 80, 000 lux
filter green
arm
type pantographic arm
range 1040mm( 1st arm 320mm, 2nd arm 605mm)
rotation angle 270 dgeree
elevation stroke 350 mm
column and base
base size 600 mm
height from objective to floor min. 1000 mmmax. 1350 mm
weight 48 kgs
accessories
binoculars 45 degree inclined binoculars f'=160 mm
objective f'=250 mm, 350mm, 400 mm
beamsplitter dismountable
adaptor for ccd camera f'=65 mm
integrated bs and ad
ccd camera.
