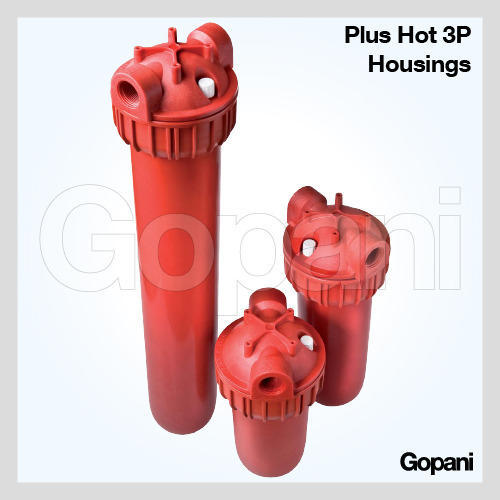

Plus Hot 3P Filter Housings

Be it online payment processing or offline payment processing, we are capable of executing both as per your convenience. We take care of all your transactions made; by this, we make all the procedures transparent. Development of modular control inside our warehouse helps in proper organization of the products and ensure complete safety while storage. The entire system is properly managed by our warehousing experts.

Product Description : Plus Hot 3P is a range of housings applicable for hot water with special FA-Hot wound polypropylene cartridges, with CPP polypropylene melt-blown cartridges and with RA stainless steel net cartridges.

The housings are made in 2 main versions :

• Hot 3P housings for SX cartridges with standard flat seals (DOE), height at 5½, 7½, 10½, and 20½.
• Hot S 3P housings with bottom discharge valve, for SOE cartridges with 45 mm double oring collar, height at 10½ and 20½. With IN/Out configurations at 1/2½, 3/4½ and 1½, with BSP or NPT plastic threads Hot 3P Plus housings are suitable to a wide range of applications for hot water filtration.
• Plus Hot 3P housings are manufactured with the finest and most advanced materials under constant focus on innovative processing technologies and ceaseless modernization to ensure the absolute quality of our products.  A set of accessories is available on demand to complete the housings kit - wall bracket, opening spanner.

Working Conditions :

• Max working pressure - 8 bar (116 psi)
• Max working temperature -  80^oC (176^oF)
• Min working temperature - 4^oC (39.2^oF)

Specifications :

• Non-toxic materials.
• Head and ring nut - reinforced nylon.
• Bowl -  reinforced nylon.
• O-ring - EPDM.
• Breather-valve -  body polypropylene, o-ring EPDM.
• Discharge ball-valve -  CW 617 N brass nickel plated.
• Discharge plastic nipple - reinforced polypropylene.
• Drain funnel - reinforced polypropylene. Products from Atlas Filtri, Italy
