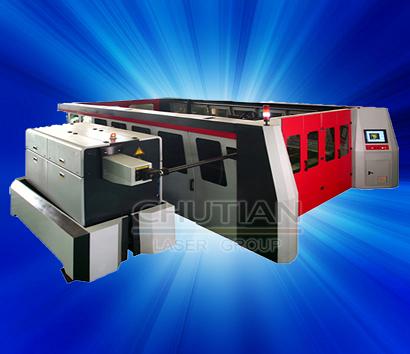

PLUS Series 2D High Power Laser Cutting Machine

We offer laser cutting machine.
PLUS Series 2D high power laser cutting machine is based on a designing for customer who requires for extremely high cutting speed.
Detailed Features
Double servo motor drive
High stability, high speed and acceleration
Fully digital CNC controlled servo motor digital communication
New ALFACONTROL operating software developed by El.En Group Italy
Available with 6kW CO2 laser source power for every high productivity on high thickness material
New fully accessible enclosure with 3-sides-accessibility
New hydraulic lifter for pallet exchange
Possibility to be used with or without the pallet exchange
Brand new 6020 Model with beam path compensation, pallet exchange, covering 6m Y-axis without repositioning
Technical Specification
Model PLUS 3015 PLUS 4020 PLUS 6020
Operating Mode
CW/PW
Working area(mm) 3000mm×1500mm 4000mm×2000mm 6000mm×2000mm
Accuracy(mm)
±0.05
Rapid speed
120m/min
Maximum Acceleration
1G
Laser power option All models can equipped with laser source (2200W ~ 6000)
Dimension(mm) 10000×5000×2200 12000×5600×2200 17000×6300×2200
Weight (kg) 14T 16T 19T
