Plush Toy Laser Cutting Machine

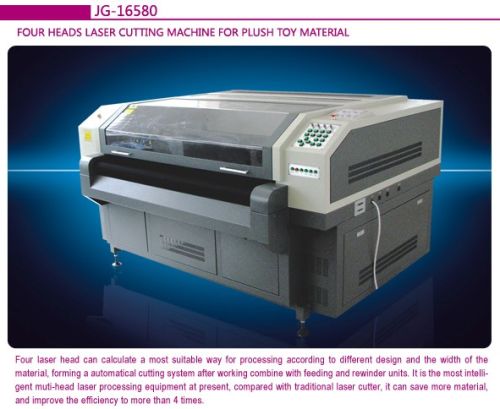

JGHY-16580LD IV Four heads Movable Laser cutting machine for Plush Toy material
Product Feature
Four laser head can calculate a most suitable way for processing according to different design and the width of the material, forming a automatical cutting system after working combine with feeding and rewinder units. It is the most intelligent muti-head laser processing equipment at present, compared with traditional laser cutter, it can save more material, and improve the efficiency to more than 4 times.
Application Field
Suitable for all kinds of cloth, nap fabric.
Technical Parameter
Laser type CO2 Hermetic and detached laser tube
Laser power 100W×4 or 80W×4
Working table Pedrail working table
Cutting area 1600mm×780mm
Cutting(no-load)speed 0-48000mm/min
Max cutting area of one head 400mm×800mm
Moving system Servo system, offline joint controlling
Power supply AC220V±5% / 50HZ
Format support AI, BMP, PLT, DXF, DST etc
Standard collocation Mini air compressor, laser chiller, 500W exhaust
Select collocation High pressure blow magnetic valve and control board, auto feeding and rolling equipment
*Working area and laser power can be customized according to requirement.*
---If you are interested in our products, please contact me(limu at goldenlaser org) for quotation and offersheet.
