Plywood - Cold Press

MOQ1 Set(s)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering 400 ton plywood - cold press. model by814x8/4-llz nominal gross pressure 4000kn direction of feeding plate horizontal opening 1600mm dimension of workingbench 2700*1380mm diameter....

View More Details

Send Enquiry

Company Information

Linyi Metroco Machinery Co. Ltd

Linyi

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 1992

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

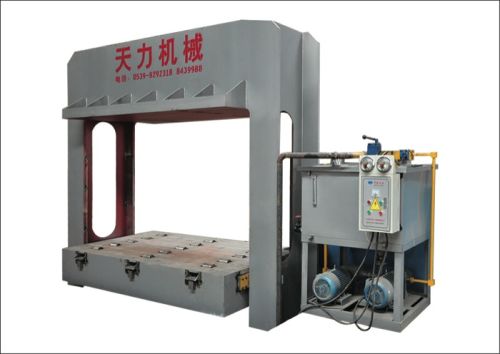

We are offering 400 ton plywood - cold press.
model by814x8/4-llz
nominal gross pressure 4000kn
direction of feeding plate horizontal
opening 1600mm
dimension of workingbench 2700*1380mm
diameter of cylinder 320mm(wuxi)
numbers of cylinder 2pcs
side helpful cylinder 60mm*2
pressurization 25mpa
stroke of cylinder 1000mm
position of cylinder upside
pressure of unit plate blank 12kgf/cm2
dimensions of the board 2560*1280mm
allowed pressure 25mpa
net weight 17000kg
control method automatic pumping station
thickness of upper and lower crossbeams 900mm
thickness of steel plate 35mm
thickness of acctive crossbeam 400mm
thickness of steel plate 20mm
chain and roller transports device(choose by buyer) yes.
