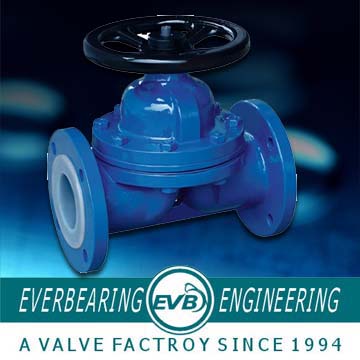

Pn10/pn16 Fluorine Lined Diaphragm Valve

We offer fluorine lined diaphragm valve:
technique standard
design gbt 12235
face to face gbt 12221 hgt 3704-2003 asme b16.10
flange dimension hg20592-97 ansi b16.5a
mode of driving hand,electrically-driven,air-operated
nominal pressure 0.6-2.5mpaclass 150
pressure test gbt 13927,api 1598
main parts material specifications
name refined d.i cast steel stainless steel
qt c p r rl rl
bodybonnet qt400 wcb cf8 cf8m cf3 cf3m
stem 2cr13 2cr13 cf8 cf8m cf3 cf3m
inner lining fep(f46)ptfe(f4)pfapope
daiphragm fep(f46)crpfafpdm
disc qt400 wcb cf8 cf8m cf3 cf3m
bolt 35 35 ss316 ss316 ss302 ss302
nut 45 45 ss304 ss304 s304 ss304
main dimensions
dn l d d1 d2 f b z-φd d0 h
15 125 95 65 45 3 15 4-14 120 120
20 135 105 75 55 3 17 4-14 120 120
25 145 115 85 65 3 17 4-14 160 130
32 160 140 100 75 3 19 4-18 160 135
40 180 150 110 85 3 19 4-18 180 160
50 210 165 125 100 3 21 4-18 200 165
65 250 185 145 120 3 21 4-18 250 200
80 300 200 160 135 3 22 8-18 280 220
100 350 220 180 155 3 23 8-18 300 275
125 400 250 210 185 4 24 8-18 320 335
150 460 285 240 210 4 26 8-23 350 380
200 570 340 295 265 4 26 12-23 450 500
250 680 405 355 320 4 28 12-26 500 575.
