Pneumatic ACM Test Stand

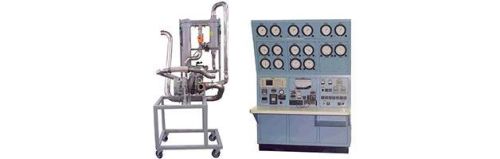

The test stand is designed for carrying out test procedures on pneumatic ACM units. Console and piping system are used for aircraft Air Cycle Machine testing. Console instrumentation contains: oscilloscope, spectrum analyzer, DC volt & ammeters, humidity, rpm, vibration, temperature indicators, timer and flow computer. Air Service: 80-100 psig @2-4 scfm Each section has several air pressure and vacuum systems, plus 120 Volt, 60 Hz, 400 Hz, and DC electrical circuits Electrical Service: 120 V, single phase, 60 Hz.
