Pneumatic Actuator

We are offering pneumatic actuator.

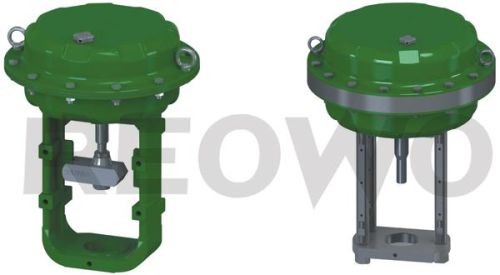

The l1000 series pneumatic actuator is a multi-spring diaphragm actuator with such features as light weight, small volume, stable output force, etc. Through acting on the diaphragm inside the actuator, the air supply conquers the reverse action force of the spring and makes up ward and downward linear movement. When there is no air pressure, the compression spring releases pressure and pushes the push shaft of the actuator to move upwards or downwards. The actuators of this series can be classified into direct action type and reverse action type .
According to different diaphragm effective areas and travels, the actuators include the following 5 specifications:
diaphragm effective area(cm2) travel(mm) reverse direct action
360 16 l112bc l122bc
360 25mm l113bc l123bc
560 40mm l114bc l124bc
900 60mm l115bc l125bc
1400 100mm l116bc l126bc
the action principle of the l2000 linear motion multi-spring piston pneumatic actuator is the same as that of the multi-spring diaphragm actuator. But the l2000 series actuator replaces the diaphragm by piston, which has solved the problems of the diaphragm actuator being unable to bear relatively high air pressure and easy ageing of the diaphragm, and the actuator can bear higher air pressure. The increase of the air pressure has enhanced the output force of the actuator. The standard configuration is single acting type. Double acting type actuator can also be designed according to the need .
According to different piston diameters and travels ,the actuators include the following 4 specifications:
piston diameter(mm) travel(mm) reverse direct action
210 25 l213bc l223bc
270 40 l214bc l224bc
365 60 l215bc l225bc
400 100 l216bc l226bc
