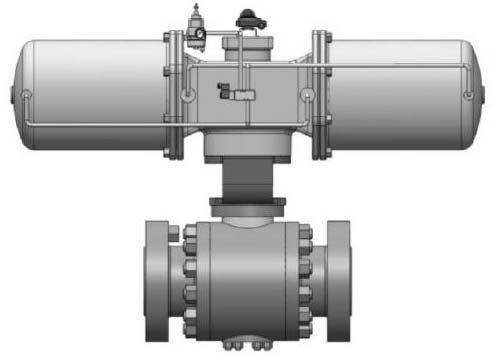

Located in China, we are a prominent manufacturer, exporter and supplier of Pneumatic Ball Valve (HB2512).The complete name of this Ball Valve is HB2512 Pneumatic O Type High Pressure Ball Valve, attributing to the Valves usability in high pressures. This Ball Valve has shut-off application in chemical, petroleum, light and other industries. Utmost care is taken to give this Ball Valve exquisite appearance, supreme quality interior, zero leakage and auto-compensation structure of packaging. This Patented Ball Valve comes with various other features such as stem torque unloading, bidirectional sealing, stem anti blow-out function and anti-fire structure.
Product Introduction :
| Full Bore Type | |||||
|---|---|---|---|---|---|
| Nominal Dia. | CV | Nominal Dia. | CV | ||
| mm | inch | -- | mm | inch | -- |
| 15 | 01/02/15 | 25 | 80 | 3 | 600 |
| 20 | 03/04/15 | 45 | 100 | 4 | 1100 |
| 25 | 1 | 85 | 125 | 5 | 1700 |
| 32 | 01/01/04 | 112 | 150 | 6 | 2600 |
| 40 | 01/01/02 | 200 | 200 | 8 | 4200 |
| 50 | 2 | 320 | 250 | 10 | 6000 |
| 65 | 02/01/02 | 450 | 300 | 12 | 8600 |
Model | HB2512 | ||
|---|---|---|---|
Nominal Dia. | DN15~DN300(1/2~12) | ||
Nominal Pressure | PN100,CL600 | PN150,CL900 | PN250,CL1500 |
Ball Structure | Floating ball | DN15~DN65 | DN15~DN65 |
Trunnion ball | DN80~DN300 | DN80~DN300 | |
Ball | Full bore | ||
Connection | Flanged (RF/RJ) | ||
Face to face | Refer to Table 9-10 of the Catalogue for HB2512 Pneumatic O Type High Pressure Ball Valve | ||
Material | CF8,CF8M,CF3M,15CrMo | ||
Material & treatment | Refer to Table 3 of the Catalogue for HB2512 Pneumatic O Type High Pressure Ball Valve | ||
Allowable temp. range for material | For material working temperature, refer to Table 4 of the Catalogue for HB2512 Pneumatic O Type High Pressure Ball Valve | ||
Packing | PTFE, PEEK, graphite | ||
Leakage | Class IV~VI | ||
Flow characteristic | Quick open |
Quality assurance | Chinese Standard | American Standard |
|---|---|---|
| ISO9001 ,TS2710J59 | ISO9001 | |
| Design & manufacture | GB/T12237 | API 6D |
| Flange standard | GB9112-9124,HG20592-2009 | ASME B16.5 |
| Face to face | GB12221 | ASME B16.10 |
| Inspection & test | GB/T13927 | API 598 |
Temp oC | PN100 BAR | PN150 BAR | PN250 BAR | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WCB | CF8 | CF8M | CF3/CF3M | WC6 | CF8 | CF8M | CF3/CF3M | WC6 | CF8 | CF8M | CF3/CF3M | |
| -29~38 | 10.5 | 10.5 | 10.5 | 9.4 | 15.8 | 15.8 | 15.8 | 14.1 | 26.3 | 26.3 | 26.3 | 23.5 |
| 93 | 10.5 | 9.5 | 9.7 | 7.9 | 15.8 | 14.1 | 14.5 | 11.9 | 26.3 | 23.5 | 24.2 | 19.8 |
| 149 | 10.5 | 8.4 | 8.8 | 7.1 | 15.8 | 12.6 | 13.1 | 10.7 | 26.3 | 21.1 | 21.9 | 17.8 |
| 204 | 10.5 | 7.8 | 8 | 6.4 | 15.8 | 11.7 | 12 | 9.7 | 26.3 | 19.4 | 20 | 16.2 |
| 260 | 10.5 | 7.3 | 7.5 | 6 | 15.8 | 10.9 | 11.2 | 9 | 26.3 | 18.2 | 18.6 | 15 |
| 315 | 10.5 | 6.8 | 7 | 5.6 | 15.8 | 10.3 | 10.6 | 8.5 | 26.3 | 17.1 | 17.7 | 14.1 |
| 343 | 10.5 | 6.7 | 6.9 | 5.5 | 15.8 | 10.1 | 10.4 | 8.2 | 26.3 | 16.8 | 17.3 | 13.7 |
| 371 | 10.3 | 6.6 | 6.8 | 5.4 | 15.5 | 9.9 | 10.2 | 8 | 25.8 | 16.5 | 17 | 13.4 |
| 399 | 10.3 | 6.5 | 6.7 | 5.2 | 15.4 | 9.8 | 10 | 7.8 | 25.6 | 16.3 | 16.7 | 13.1 |
| 427 | 10.1 | 6.3 | 6.6 | 5.1 | 15.2 | 9.5 | 9.9 | 7.7 | 25.3 | 15.8 | 16.5 | 12.9 |
| 454 | 9.5 | 6.2 | 6.5 | 5 | 14.3 | 9.3 | 9.9 | 7.5 | 23.8 | 15.5 | 16.4 | 12.6 |
| 482 | 8.3 | 6.1 | 6.5 | - | 12.4 | 9.1 | 9.8 | - | 20.6 | 15.2 | 16.3 | - |
| 510 | 5.6 | 6 | 6.4 | - | 8.4 | 9 | 9.7 | - | 14 | 14.9 | 16.1 | - |
