Product Details
Company Details

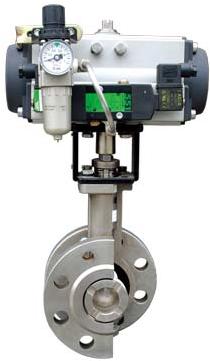

With vast experience, we have carved a niche for ourselves as a manufacturer, exporter and supplier of Pneumatic Ball Valve (HB2810) from China. Also referred to as HB2810 Pneumatic Eccentric Plug Rotary Control (Shut-off) Valve, this Valve is used in chemical, petroleum, coal mining, metallurgy, paper making, water treatment and other industries to control and shut-off highly viscous fiber and granule media. The Valve we offer is well-known for its long life span, zero leakage and high performance. We offer this valve with high quality interiors and exquisite appearance.

Product Introduction :

HB2810 Pneumatic Eccentric Plug Rotary Control (Shut-off) Valve is applicable to the control and shut-off of media with high viscosity, fibre and granule for chemical, Petroleum, coal mining, metallurgy, paper making, water treatment and other industries. It features long lifespan, zero leakage(hard seal),high security, high seal performance of packing, large CV value and exquisite appearance and high quality of interior.
Patent No. 2011203278025, 2012200387951, 2012200388259, 2011303050512, 2012300193858, 2012300193839, 2012301852104, 2012202352815, 2012202576233, 2012202575404, 201320895257.9, 201320895258.3

Graphical Image

Download Detail File : Click Here

Main Specifications

Flow characteristics	Almost Eq%
Rated stroke	(Shut-off type):0~90°(Adjusting type):0~90^o
Leakage	Soft sealing	DN25~400	Class VI
	Hard sealing	≤DN200	Class VI
		≥DN250	Class V Class VI for optional)
Rangeability	100:01:00

Body Specifications

Model	HB2810
Nominal pressure	PN1.6	Class150~Class600
Norminal dia.	DN25~DN400	1~16
Plug type	Eccentric Eccentric spherical crown
Connec.type	Flange (RF)
Face to face	Refer to Table 10 of the Catalogue for Pneumatic Eccentric Plug Rotary Control (Shut-off) Valve
Body material	WCB,CF8,CF8M,CF3M

Applicable Standard

Quality guarantee	Chinese Standard	American Standard
Quality guarantee	ISO9001,TS2710J59	ISO9001
Design and manufacture	GB/T12238 ,MSS-SS-68	API 6D,ANSI B16.34
Flange standard	GB9112-912,HG20592-2009	ASME B16.5
Face to Face	GB12221	IEC 60534-3-2:2001
Inspection & test	GB/T13927	API 598
