Pneumatic Dot Pin Marking Machine

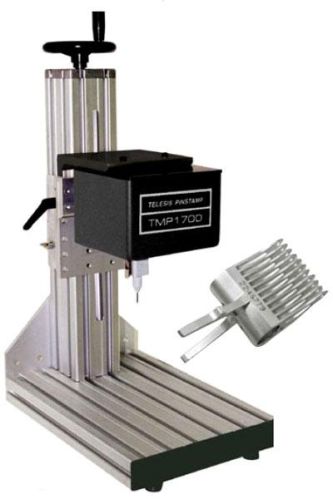

The Pneumatic Dot Pin Marking Machine (TMP 1700) is the lowest cost Pneumatic Dot Pin Marking Machine. The rugged marking head of Pneumatic Dot Pin Marking Machine features a compact, 1-12″ x 2-12″ (38.1 x 63.5mm) window, and marking speeds up to six characters per second. Pneumatic Dot Pin Marking Machine is an excellent choice for many factory-automated or on-line processes. The Pneumatic Dot Pin Marking Machine includes the TMP1700 Marking Head, but features our WIN 32 Merlin®II Visual Design Software, providing a state-of-the-art graphical user interface. The DATA MATRIX™ 2-D Code Marking Capability of Pneumatic Dot Pin Marking Machine meets all departments of defense UID requirements. The protective shutter assembly of Pneumatic Dot Pin Marking Machine shields the TMP1700 marking head from liquid and solid contaminants. Features

• 1-12″ x 2-12″ (38.1 x 63.5mm) Marking Window
• Rugged, low-maintenance XY platform
• Compact Marking Head — approximately 6.6″ x 6.2″ x 4.7″ (168 x 158 x 120mm)
• Marks a wide range of materials from soft plastics to hardened steel — up to Rc60
• Shutter assembly protects marking head from solid and liquid contaminants
• Compact, convenient TMC420 Controller with rubber keyboard and 4-line LED Display — no PC required(see page 17)
• Dot density up to 200 dots per inch (79 per centimeter
• Choice of Interchangeable Marking Pin Types for depths from .001″ - .018″ (.03 - .45mm)(see chart on pages 34 - 35)
• Pin travel accommodates surface irregularities to .25″ (6mm)
• Automatically generates serial numbers, time, date and shift codes
• Stores up to 75 marking patterns
• Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
• Optional Accessories
  • TMP1700090 System includes the TMC090 Controller and Merlin®II Visual Design Software in lieu ofTMC420 Controller (see page 17)
  • Rotary fixtures for marking circumferences of cylindrical parts
  • Marking head mounting post including programmable Z-axis version
  • Panel-mount and IPNEMA Rated Controllers (see page 21)
  • LogoFont design software package for design of custom fonts or logos
  • PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
  • PC-Based Pattern Back-up Utility available FREE from www.telesis.com
