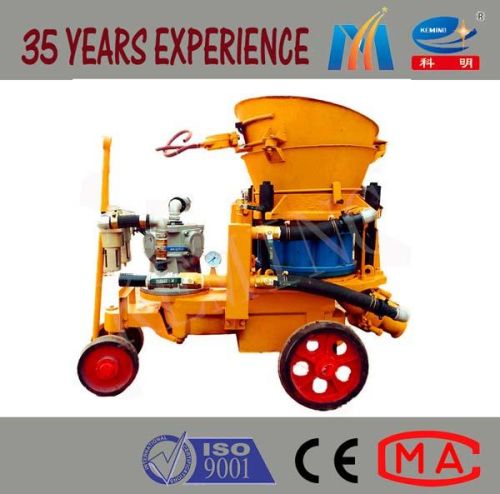

Pneumatic Dry Concrete Shotcrete Machine

We are offering pneumatic dry concrete shotcrete machine.
Features:
1.pz-5a pneumatic dry concrete shotcrete machine
2.pz-5a pneumatic dry concrete shotcrete machine is consisted of driving device, rotor assembly, air system, concrete spraying system etc.
3.pz-5a pneumatic dry concrete shotcrete machine has advanced technology, rational structure, convenient operation, stable performance and long service life.
application:
1.it can be used for dry or half wet concrete spray construction.
2.it is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
technical parameters:
model:kpz-5a (pneumatic motor)
capacity :5 m3h
max. Conveying distance:≤200 m
watercement ratio:≤0.4
max.aggregate.size:15 mm
delivery pipe id.:51 mm
working pressure:0.6 mpa
air consumption:8 m3min
dimension:1350×750×1200 mm
total weight:600 kg
packaging & shipping:
standard export package; fumigation-free wooden case or as your request.
——1 week for our own design. (motor: 380v 50hz 3phases)
——15-25days for customized model.
——12 months warranty period since delivery the machine.
Payment:
tt, 30% deposit 70% before shipment.
Lc at sight (high bank charge, not suggest, but acceptable)
100% tt in advance (especially for air shipment or small amount).
