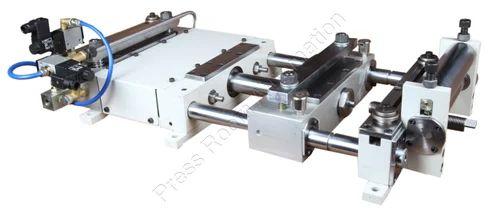

Polished Mild Steel Pneumatic Feeder (Coil Feeder)

₹ 90,000 / Piece

Driven TypePneumatic
MaterialMild Steel
FinishingPolished
Brand NamePress Room Automation
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

PRESS ROOM AUTOMATION AND FEED FIXTURES PVT LTD.

Anand Nagar, Thane, Maharashtra

4.4/5

Member Since 16 Years
Nature of Business Manufacturer
GST No. 27AABCP8669E1Z3

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

PressureMedium Pressure
ShapeRectangular
Driven TypePneumatic
Brand NamePress Room Automation
MaterialMild Steel
FinishingPolished
ColorWhite
Warranty1 Year
Max Stroke200 Per Minute
Max Stroke Thickness2.5 mm
Max Stroke Length50 mm
Required Air Pressure5-8 Bar
Max Width50 mm

Extra Mid Series Pneumatic Feeder is used to feed width from 100-600 mm & thickness from 0.5-2.5 mm material. It is most suitable for manufacturing small auto parts, kitchen appliances, utensils, furniture & fixtures, Locking Systems, etc.

The Feeder will be actuated by Remote Valve via Solenoid Valve, Proximity Sensor and Cam Assembly along with pilot release mechanism for piloted tools and thin strip guiding device for feeding material below 0.5 mm thickness.

Extra Mid Series (EMS)
Max width in mm	Max stroke Length in mm	Max strip Thickness mm	Max strokes Per minute	Pressure of fix Clamps kg.	Pressure of Mobile Clamps kg.	Traction	Total Consumption CC/Stroke	Weight Kg.
Max width in mm	Max stroke Length in mm	Max strip Thickness mm	Max strokes Per minute	Pressure of fix Clamps kg.	Pressure of Mobile Clamps kg.	force Kg.	Total Consumption CC/Stroke	Weight Kg.
100	100	2.5	140	65	137	40	0.77	18.5
100	200	2	80	65	137	40	1.73	19.5
100	300	1.5	60	65	137	40	2.56	20.5
150	150	2	100	65	137	40	1.54	23
225	200	1.2	80	65	137	40	1.73	30
300	300	0.6	60	65	137	40	2.56	35
400	100	1	80	65	137	40	0.77	42.5
600	100	0.5	60	65	137	40	0.77	51
