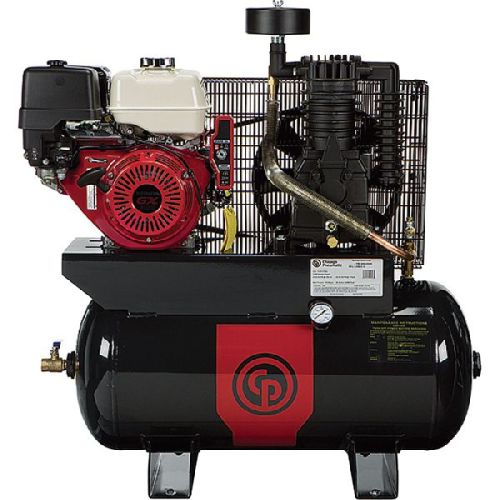

PNEUMATIC GAS POWERED AIR COMPRESSOR

Max. PSI
155 175 175 175 175
HP
4.6 12 14 11 13
CFM at 175 PSI
- 18.7 24 - 24
CFM at 135 PSI - 21.4 - - -
CFM at 100 PSI - - - 18.5 -
CFM at 90 PSI
5 24.4 24.3 - 24.3
CFM at 40 PSI 6.9 26.8 - - -
Engine
Honda OHC Honda GX 390 OHV Kohler Honda Honda
Start Type
Recoil Electric wrecoil backup Electricrecoil Electricrecoil Electricrecoil
Engine Displacement (cc) 160 390 - - -
Engine Idle Control Yes Yes - - -
Stage Single 2 2 2 2
Drive Direct Belt Belt Belt Belt
Tank Type Horizontal twin Horizontal Horizontal Horizontal Horizontal
Air Tank Size (gal.) (2) 2 30 30 30 30
Portable or Stationary Portable Stationary Stationary Stationary Stationary
Pump Oil-free Cast iron Cast iron, splash-lubricated, 2-cylinder Cast iron Cast iron, splash-lubricated, 2-cylinder
Duty Cycle
80 100 100 - 100%
Air Outlet Size (in.) 14 34 ball valve 34 34 12
After-Cooler Included No Yes - - Yes
Drain System Manual Manual Manual Manual -
Low Oil Protection No Yes - - -
Fuel Capacity (gal.)
1.9 U.S. quarts (1.8 liters) 1.6 1 12 - 1 12
Dimensions L x W x H (in.)
24 12 x 21 12 x 20 41 x 19 x 40 44 x 22 x 46 45 x 19 x 45 44 x 22 x 46
