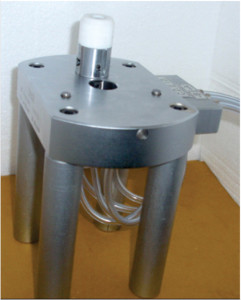

PNEUMATIC GAUGING FIXTURE SINGLE CYLINDER

PARAMETERS:   Pin hole diameter Center distance Bearing diameter Shaft diameter at multiple levels Parallelism between bearing & Pin hole diameter (bend & twist) Taper angle.   FEATURES:   Precise, easy and quick measurement of multiple parameters in one go Readout unit or computerised system with SPC analysis Fully electronic contact type system also available Grading and grade marking integration
