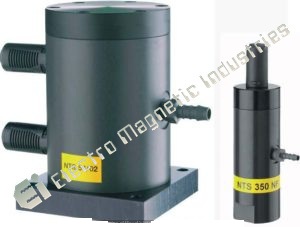

PNEUMATIC LINER VIBRATOR

The pneumatic linear vibratos series NTS are especially suitable for conveying, required compacting and loosening bulk material, due to the completely linear vibration.
They are used to empty bins and as drives for conveyor and dosing troughs. A special feature of NTS vibrators is the possibility of the synchronous operation of several NTS when using a coupling kit. Starting from NTS 350 NF to NTS 50/80 this is available as special execution and starting from NTS 50/10 to NTS 20/40 it is standard

The vibration (sinus-shaped oscillation) is produced by freely vibrating, self reversing piston. This oscillation supports, expedites or enables a variety of applications. NTS linear vibrators start and stop without delay in any installed position.
A built-in pressure spring provides a reliable start-up of vibratos with aluminium housing up to NTS 50/04 and NTS 50/08. The amplitude is set by means of the optional throttle valve.
An increase of the supply pressure causes a higher frequency. For operation a control valve is required (not included in scope of delivery). ATEX complient liner vibrators of the NTS series and units with stainless steel housing are available.
