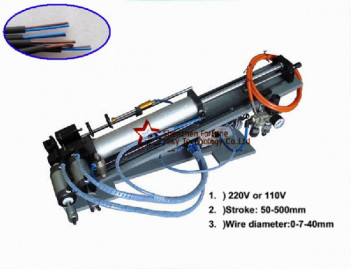

Pneumatic Multicore Cable Jacket Stripping Machine

We are offering pneumatic multicore cable jacket stripping machine.
Feature:
is suitable for small wire cable processing, such as acdc, power cord, computer cable, electronic cable, multi-core cable.
Cutter types & options:
stripping cutter 1 set (2 pieces), ll-305 will be equipped with flat cutter in default, other models with v-cutter in default, flat cutter suits for flat cable, v-cutter suits for wire diameter 4.0mm or less (may adjust the size), round cutter suits for wire diameter 4.0mm above (diffirent wire size,diffirent round cutter size).
Please kindly provide your wire diameter and insulation thickness for choosing a suitable blade and model.
specifications
model no.
Ll-305
ll-310
ll-315
ll-330
ll-416
ll-520
stroke
50mm
100mm
150mm
330mm
150mm
500mm
stripping (diameter)
max 7mm
max 12mm
max 18mm
max 20mm
max 25mm
max 40mm
power voltage
ac 110v220v60hz20hz
air pressure
3-7kgcm2
force
31-73kg
49-115kg
84-196kg
84-196kg
165-300kg
400kg
net.weight
20kg
25kg
35kg
65kg
45kg
102kg
size: mm
400x300x270
480x330x280
660x390x340
1100x550x450
615x425x375
900x700x600
