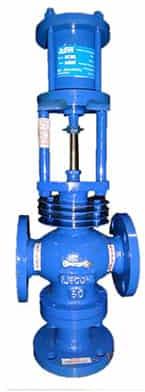

Pneumatic Open Cylinder Control Valve, For Steam, Thermic Oil, Water, Chemicals, Size : DN15 To DN200

Pneumatic Open Cylinder Control Valve, For Steam, Thermic Oil, Water, Chemicals, Size : DN15 To DN200

Get Latest Price

ApplicationSteam, Thermic Oil, Water, Chemicals
SizeDN15 to DN200
Working Pressure10Kg/cm²
Type2 way, 3 way
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

View More Details

Company Information

Saraspur, Ahmedabad, Gujarat

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

Product Details

SizeDN15 to DN200
ApplicationSteam, Thermic Oil, Water, Chemicals
Working Pressure10Kg/cm²
RatingASA 150#
Packing BoxPreformed Rings in Graphoil Packings/Teflon Rings Combinations of Both
Seat Leak Test12.5Kg/cm² for 150#
Testing & InspectionStandard
Body Hydraulic Test Pressure20Kg/cm² for 150#
Type2 way, 3 way
End ConnectionsFlanged according to ASA 150#
Maximum Temperature180°C for 2 way & 400°C for 3 way Valves
IndustriesTextiles, Plastics, Dairy, Pharmaceuticals, Food-Processing Petrochemicals, Lamination, Leather, Etc.
BonnetStandard Carbon Steel Fabricated. Extension Column & Radiation Fins for 3 way Valves
ShaftSS.304/316 screwed in the Actuator Stem
Body MaterialC.I.IS 210 Gr FG 200/ASTM A216 Gr WCB/ ASTM A 351 Gr CF8/CF8M
Valve MountingHorizontal
YokeSG Iron
ValveNormally closed. Normally open on request
PlugS.S.304/316/410 ‘V’ Port Characteristics/Teflon Filled
SeatS.S.304/316 Screw in Type
Sealing TypeMetal-to-Metal Seal/Soft Seal

VALVE : ACTUATOR

Sr. No	SPECIFICATIONS		INFORMATIONS
1	Camber Materia		Aluminum
2	Piston		Spring Loaded Piston
3	Spring		Spring Steel
4	Stem		S.S.
5	Air Operation		50 PSI and above

MODEL	Size	F	A	A1	H	H1	D	I	K	R	R1	N	O
JDCV-F-1″	1″	185	90	145	345	345	108	11	79	51	1. 6	4	16
JDCV-F-1.5″	1. 5″	207	90	153	350	350	127	14	98	73	1. 6	4	16
JDCV-F-2″	2″	238	100	170	390	390	152	16	120	92	1. 6	4	19
JDCV-F-2.5″	2 5″	300	128	195	530	530	178	18	140	105	1. 6	4	19
JDCV-F-3″	3″	305	128	200	550	550	190	19	152	127	1. 6	4	19
JDCV-F-4″	4″	360	165	250	590	590	229	24	190	157	1. 6	8	19
