The auto feeding device fitted at the entry of the stenter.

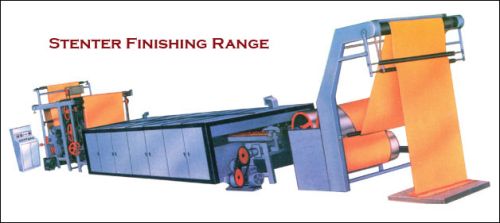

The main stenter machine stands on C.I. casted legs which are coupled together by C.I. casted supports ensuring the vibration free movement of the machine rails are fitted on the structure for smooth & accurate running of clips. The clips are sg iron casted which gives long & sturdy lift and special desing keep the proper tension without damaging the fabrics. Clip openers are provided at both the entry and delivery end of the stenter. The stenter is driven by heavy duty sprockets. Fully motorized and complete system of width adjustment is fitted on the machine.

Drying Chambers :

Selvedge drying & plaiting unit :

Heating System :

Drive :

The machine is running with D.C. Drive. Main drive motor of padding mangle and stenter are Tefc D.C motor. Reduction gear box is coupled with the main motor of stenter machine.

Control :

Control panel for the machine will be fabricated by 16 Guage crc and finished with powder coating after defrosting procedure. Panel will be incorporated with the electric switch gear as per I.S STD. of required capacity. All A.C and D.C drive will control by separate auto manual circuit for different function of the machine. And Equipment. D.C. Drive will be supplied with dimmer jet Circuit & Dimmer Stat. Temperature controller for each chamber will beprovided with temperature compensating cable, Sensors, Digital, Indicator and controller.  The Complete Operation of the Machine will be operated and control at the push button type control panel board and Operating console fitted above the stenter machine

Finishing :

Machine will be finised with red oxide, putty & primer paint and finally with 3 coats of industrial paint. Optionally finished with power coating process at extra cost.

Important Note :

The length & width of the stenter machine, NO. OF Chamber, H.P of D.C/A.C motor varies according to buyer’s requirement.

Operating manual, wiring diagram of control panel and foundatio plan will be provided with the machine.
