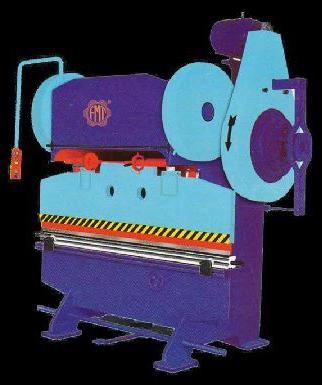

Contact SupplierForeman Machine Tools Pvt. Ltd. Press Brakes ore designed and developed through years of experience in Sheet Metal working machines. Kishan Press Brakes are widely accepted in industries for continuous production runs and in areas requiring and repeatability coupled with high production.
Â
Is of closed box type steel fabricated, which forms a rigid backbone for the shear and a solid backing for the lower knife. Additional ribs, under the table adds to its strength.
CRANK SHAFT & FLYWHEEL SHAFT:Is of best steel, accurately machined and runs in gun metal bearing and all other installed in gun metal bearings.
HOLD DOWN:Is of steel fabricated spring loaded ensures uniform pressure through out the cutting length without any slipping irrespecti ve to the sheet.
ROLLING KEY CLUTCH:Made of EN-24 steel for positive engagements and continuous operation having three key way. Single rolling key system is incorporated in the machine ensuring easy and efficient working of the machine.
DRIVE:Is through "B" Belts on the fly wheel and other chain of job cut gears for smooth running and longer life.
BRAKE:Constant spring loaded adjustable brake is provided.
BACK GAUGE:In KSML 5, 6, 7 &KSMH 4 to 7 are screw drive where as in KSUG 1 to 4 &KSMH 1 to 3 am of rack pinion type designed to accuracy and easily.
STANDARD EQUIP:Side, Back, Front Gauges and Table extension, Fly Wheel and Gear guards, Foot Pedal, Mount and Motor Pulley, Hold Down divide, Set of 4 edge HC HCR Blade and Manual oil Pump for Lubrication.
LUBRICATION:For sufficient lubrication oil cups and oil points are provided.
BLADE:Is four edged HC HCR provided for longer tool life.
