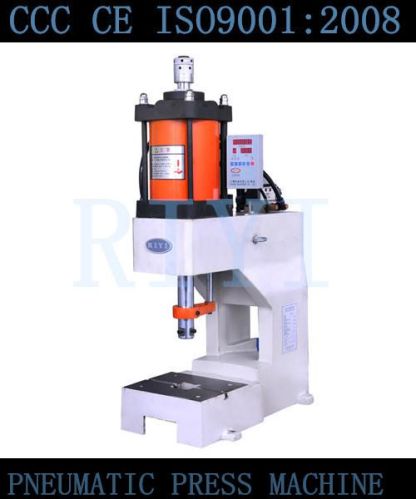

Pneumatic Press Machine

we are offering Pneumatic press machine,alibaba china 700kn Deed throat Air Press Machine
1.The c body design 2.easy to operate
Pneumatic press machine,alibaba china 700kn Deed throat Air Press Machine
Non-standard plan can be customized according to customer's demand
FBQ-AL700
Technical parameter
Model
max working height 280mm
cylinder stroke 100mm
table size 240*180mm
using pressure 0.4-0.7mpa
mold mounting hole 22mm
power AC220v
using pressure theory pressure
0.4mpa 4.58kn(458kgf)
0.5mpa 5.73kn(573kgf)
0.6mpa 6.87kn(687kgf)
0.7mpa 8.02kn(802kgf)
weight 155kgs
Product feature
1.Compressed air as power source, easy to operate.
2.Adopt microcomputer control,use small space,easy to operate,beautiful appearance.
3.No hydraulic system noise,can reduce electricity consumption and thus reduce production costs.
4.Output force adjustment easy,as long as regulate the input air pressure,should be able to achieve the required pressure.
5.Safety designed,using both hands to operate,with emergency stop and jog up and down function.
6.Multi-use,for pressing,punching,riveting,assembly, cutting and so on.
