Pneumatic Riveting Machine, Capacity : 9KN, Packaging Type : white

₹ 1.81 Lakh / 3000 3000 Set

MOQ1 Set(s)
Brand NameRivet
Conditionpneumatic
Capacity9KN
Usageriveting machine
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of Flowerpneumatic
Brand NameRivet
Conditionpneumatic
Capacity9KN
Total Carbohydrate1 year
After-Sales Service ProvidedYes
Country of OriginChina
Usageriveting machine
Model NumberBM6TQ
StandardISO:9001,CE
Automatic Gradecommon
Average Air Consumption4-5kgf/cm²

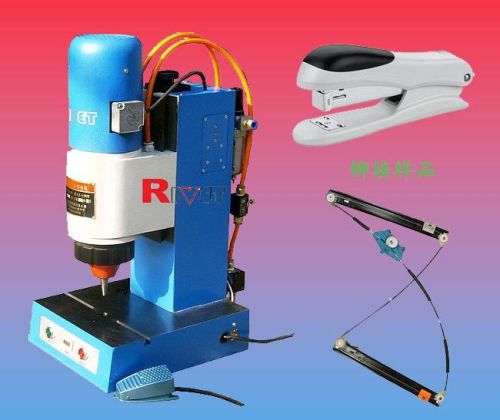

We are offering bm6tq (pneumatic orbital riveting machine)characteristics:
■desktop style
■max riveting diameter ф 6mm
■power head movable
■pressure by stepless regulation
■pneumatic driving
■rotary part protected
■double-hand buttons or foot pedal
■aerosol lubrication
■set the riveting time as will
scope of applications : the instruments and meters, daily hardware, electronic products, automobile parts, etc.
Customized available
the model of bm6tq is a kind of smaller desktop pneumatic riveting machine with orbital structure. The machine's power head system adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating, double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.02mm.
