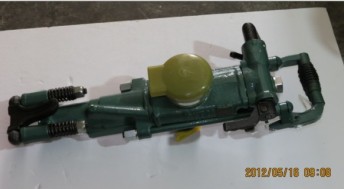

Pneumatic Rock Drill

We are offering pneumatic rock drill.
specifications
yt28 portable breaker grouting drilling
1.smooth operations
2.low maintenance
3.tough designs
4.iso9001,ce approved.
yt28 portable breaker grouting drilling
yt28 hilti drill machine is suitable for hard or harder in the (f = 8 ~ 18) of the rock drill hole horizontal or inclined direction, but also vertically upward to drill bolt holes on the roof. Inch hole is generally φ34 ~ 45 millimeter, drilling and effective depth of up to 5 meters.
the machine can tunnel cross-section according to the size and type long-winded ft160bc legs, ft160bd short legs supporting the use of gas can also be mounted on cars or diamond drilling rack use.
the machine is equipped with fy200b-type injector, operating time can provide self-lubricating, its outside the use of transparent polycarbonate shell material, easy to observe the oil surface, regulate oil, rock drilling machine at work to ensure good lubrication.
works:
yt28-type rock drill to use compressed air as a driving force to promote the pistons reciprocating motion. Stroke, when, pistons impact drill with chisel rock fragments; return trip, pistons lead solder with a certain rotation angle, continuous shocks, turning so that brazing with round-shaped carved into the rock hole.
features:
operating mechanism to focus, start a flexible, gas-water interaction, use and maintenance easy; noise, vibration small, energy-saving high efficiency, long life wearing parts, blowing hole cleaning ability, and high reliability.
drilling machine technical parameters:
parameter name
parameter units
parameters
quality machine
kg
≈26
machine length
mm
659
bore
mm
φ80
pistons trip
mm
60
average meter of the first failure
m
≥1000
tracheal diameter
mm
φ25
pipe diameter
mm
φ13
hole drilling diameter
mm
φ34~45
solder tail specifications (six pairs of side × length)
mm
22×108±1
parameters:(note:* in the f = 10 ~ 12's rock testing)
parameter name
parameter units
test pressure(mpa)
0.4
0.5
0.63
impact frequency
hz
≥28
≥35
≥36
consumption
l/s
≤52
≤55
≤81
impact energy
j
≥44
≥63
≥70
brazing torque transfer
n.m
≥15
≥19
≥23
solder transfer speed
r/min
≥250
≥260
≥300
bore speed*
mm/min
≥250
≥400
≥470
noise
db(a)
≤125.
