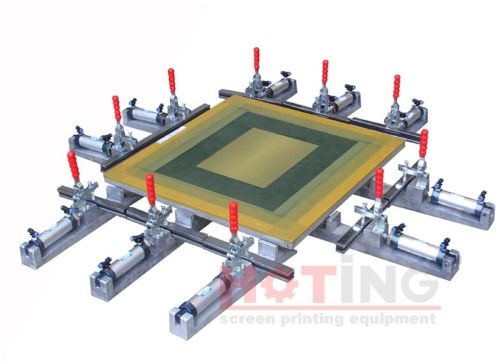

Pneumatic Screen Stretcher

Application:
This machine is a special equipment in screen printing industry. Pneumatic elements and movable clamps applied to adjust various screen stretching dimensions, featured for level screen surface, evenly tension, high efficiency.
Specification:
·Simple and easy to use
·Offers high-tension stretching
·Rubber grippers are gentle on mesh
·Independently control tension in all directions
·Maximum air pressure 0.7mpa
Parameters:
Model
TPM-300
Max frame size
600 X 900mm
Clamp width
300mm
Clamp quantity
10 units
Each weight
4Kg
Cylinder stroke
75 mm
Spare parts
Pressure regulator, plastic pipe and valve
