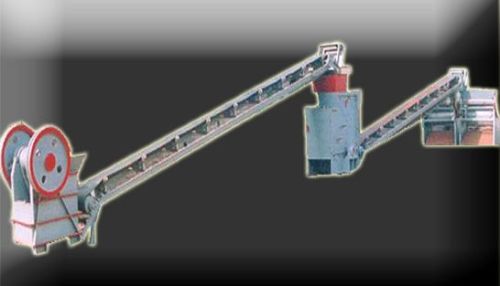

Pneumatic 100-1000kg Slag Crusher Plant, Color : Grey

Driven TypePneumatic
Power1-3kw, 3-6kw
ApplicationStone Crushing
Number Of FlowerCrusher Plant
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Number Of FlowerCrusher Plant
Availability100-1000kg
Power1-3kw, 3-6kw
Driven TypePneumatic
Total Carbohydrate1year
ApplicationStone Crushing

New Janta Engg. Works & Fabricators based in muzaffarnagar (india), the company has gained expertise as manufacturers and suppliers of Slag Crusher Plant. the slag crusher plants, offered by the company, are long lasting reliable performers with numerous cost-saving features. The company offers the very best range of the slag crusher plants that are designed to reduce effort and save money.
Salient Features

Fully Fabricated by 12mm to 20mm M.S. Plate
Heavy duty beaters used for free flow of material &absorption of huge strokes
Labor required : 4 to 6 men for complete plant
Area required : 50 square ft. complete plant
Strong & rugged construction
Magnets used are everlasting & need no maintenance
Automatic separation of iron impurities
Three adjustable weights to increase or decrease the size of product

Technical Specifications

Model	Machine	Size(mm)	(inches)	No. units	Prod.	Power
NJI 2003	Roller crusher Magnetic separator Ball Mall	480x680 425x1220 900x1800	19x27 17x48 36x72	One Two Two	3.0Ton/Hour 1.5Ton/Hour 1.5Ton/Hour	15 H.P 1 H.P 10 H.P
NJI 2004	Roller crusher Magnetic separator Ball Mall Jaw Crusher	600x680 500x1220 900x1800 450x 500	24x27 20x48 36x72 18x20	One Two Three One	6.0Ton/Hour 3.0Ton/Hour 1.5Ton/Hour 6.0Ton/Hour	25 H.P 1 H.P 10 H.P 40 H.P.
NJI 2005	Roller crusher Magnetic separator Ball Mall Jaw Crusher	900 x 900 750 x 1800 900 x 1800 450 x 500	36x36 30x72 48x72 18x20	One Three Four One	10 Ton/Hour 1.5Ton/Hour 1.5Ton/Hour 6.0Ton/Hour	50 H.P 2 H.P 10 H.P 40 H.P.
