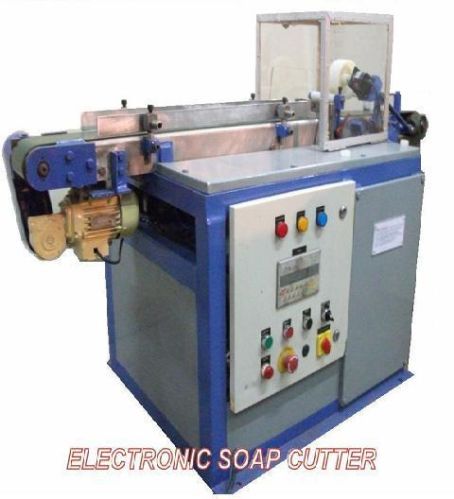

Pneumatic Soap Cutter

The fastest electronic "soap cutter" on the market!
description:
soap cutter is a fully electronic cutter suitable for any line speed.
A newly design with a vertical reciprocating system, operating with pneumatic cylinder assures very accurate cuts for high-speed operations.
The blade is directly connected with pneumatic cylinder.
Machine run on plc controls system along-with hmi encoder, it very convenient to adjust the billet size
thanks to the extremely small cutting interval there is no need of a horizontal movement of the blade that starts and stops each cycle.
the main features are:
- high speed operations independently by billet thickness.
- very high precise cuts.
- minimum noise for absence of mechanical driving mechanisms.
- minimum maintenance, no lubrication.
- no recycle
specifications:
- maximum cutting speed: 200 to 300 cutsminutes, its depend on input feeder.
- maximum cutting thickness: 90 mm
- machine cuts billet: minimum 25 mm to maximum 1000 mm
- conveyor gearedmotor: 0.18 kw
- compressor: 1.5 kw
- compressed air: 3 to 4 kg
- weight: 200 kg (approx)
