Contact SupplierChicago Pneumatic

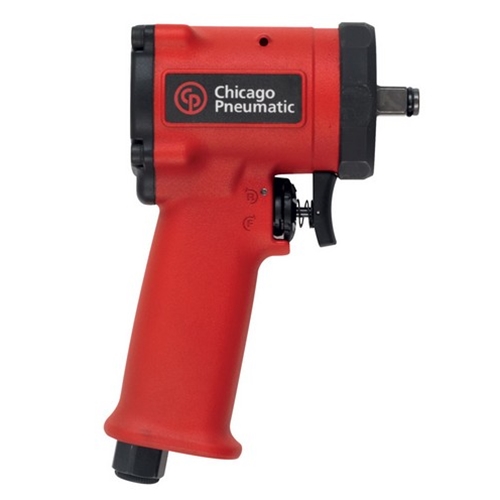

38" Stubby Impact Wrench CP7731
Best power to weight ratio: 306 ft-lbs 415 Nm
Ultra compact
Easy to use
Durable
Steel front cover & Aluminum body
One hand operation forward – reverse by either left or right handed users
Easily adjustable for either right or left handed operation
3 setting positions
Length: 4.4" = 112 mm as can size
Jumbo hammer
Part number: 8941077310
Model: CP7731
Handle type: Pistol
Square drive: 38":
Working Torque Range (fwd): 71-240 ft.lbs: 96-328
Maximum Torque (reverse): 305 ft.lbs: 415 Nm
Free speed: 6400 rpm
Blows per minute: 1200
Net weight: 2.9 lb: 1.3 kg
Powerweight ratio: 105.5 ft.lblb: 319.2 Nmkg
Length: 4.4": 112 mm
Side to center: 1": 25 mm
Average air consumption: 4.5 cfm:
Actual air consumption: 18 cfm:
Air inlet thread size: 0.25 "
Min. hose size: 38": 10 mm
Sound pressure: 93 db(A)
Sound Power: 104 db(A)
Vibration α (ISO-28927-2): 8.5 ms²
Vibration K (ISO-28927-2): 1.5 ms²
Socket retainer: Friction ring
Clutch type: Single dog clutch
