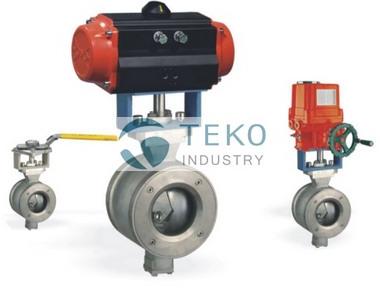

Pneumatic V Port Ball Valve, V Control Regulating Ball Valve

₹ 900 / Piece

MOQ1 Piece(s)
MaterialCarbon Steel
Brand NameTEKO
ApplicationRegulating valve
Country of OriginChina
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameTEKO
MaterialCarbon Steel
ApplicationRegulating valve
Country of OriginChina
PowerPneumatic
StructureV shape ball vale
PressureClass 150Lb-1500Lb
Temperature Of MediaHigh temperature
Model NumberVQ67H
TypeV port ball valve
MediaWater, Oil, Gas
Port Size2"-48"

We are offering Pneumatic Actuated V Port Ball Valve, V Control Regulating Ball Valve
Application:
Applied to control and regulate the fluid containing fibers or high-viscosity fluid containg solid particles. It can also be used as the isolating valve for its reliable sealing. It is widely eimployed in chemical industry, paper-making, petroleum, electrc power,etc.
Specification
Structure
Wafer: DN25-DN250 (1”-10”)
Flange: DN300-DN500
Pressure:
DIN: PN1.0, PN1.6, PN2.5, PN4.0
ANSI: 150Lb, 300Lb
Features:
*Side entry interal body, durable structure, free from distrortion and leakage.
*Self-lubricated bearing was connected between the upperbottom stem with body, which makes a light torque.
*Different materials are available upon working conditions
*Good regulation. V port ball will keep flow rate.in a geometry scale. And its rangeability is up to 300:1.
*Compact Structure, easy for installation and maintainment.
