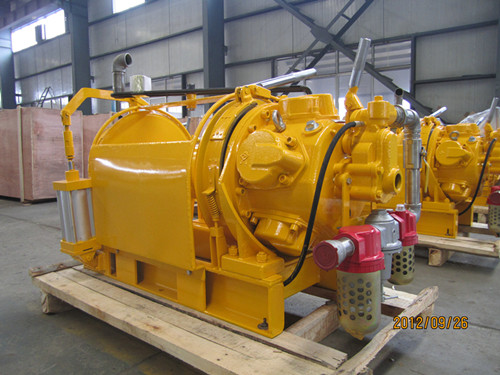

Pneumatic Winch

We are offering xjfh 1020 pneumatic winch.
1.application:air winch is ideal equipment for transmitting or lifting heavy cargo in petroleum drilling field, marine industry,mining and construction industry.
2.standard air winch features :
1).radial piston air motor. Provide positive power with precise control.
2) compact structure. Keep out dirt and dust. All parts are sealed and complete lubricated in oil and grease.
3). High sensitive control valve provides flexible control with variable speed.
4).easy operation, high safety and reliability, easy maintenance, stable performance
3.options:
1).base: common high base, common low base, flange base, trapezoid thread base, male thread base, union base, ear plate base
2). Brake: single brake (hand brake), double brake (hand and foot brake, or hand brake and hydraulic brake), triple brake (hand brake, foot brake and hydraulic brake)
3). Accessories: clasp steel rope, hook, shackle, chain, air treatment triple piece etc.
4. Xjfh series air winch technical data
model xjfh-1020 *
max. Lifting force 100kn
max. Lifting speed 20mmin
rated power 30kw
rated air intake pressure 0.8mpa
rated air consumption 25.6m3min
wire capacity 120m
diameter of wire 24mm (1516 in)
base connecting dimension 1300mm×700mm
(high base）
net weight 1400kg
