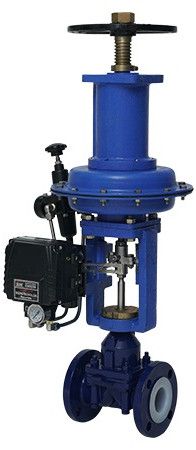

Contact SupplierWe offer a high-quality Pneumatically Actuated Lined Diaphragm Valve designed for reliable performance. This Diaphragm Valve features Pneumatic Actuation, a Pressure Rating of 150 Psi, and a Temperature Rating of up to 200°C, making it suitable for various industrial applications. The Connection Type is Flanged, ensuring easy installation and maintenance. With its durable construction and efficient Pneumatic Actuator, this valve provides precise control and long-lasting service. Ideal for manufacturers seeking a dependable solution for fluid control systems.
| No. | Description | Qty. | Material |
|---|---|---|---|
| 1 | BODY | 1 | CS/SS + PPH / PVDF / FEP / PFA LINED LINING THICKNESS : 3MM |
| 2 | BONNET | 1 | GRADED CAST IRON |
| 3 | SLEEVE & SPINDLE | 1 | SS-304 / SS-410 |
| 4 | COMPRESSOR | 1 | ASTM A 216 GR WCB |
| 5 | DIAPHRAGM | 1 | PTFE |
| 6 | RUBBER PAD | 1 | EPDM |
| 7 | FASTENERS | - | SS-304 / STEEL PLATED |
| 8 | PNEUMATIC ACTUATOR | 1 | CAST IRON EPOXY PAINTED |
| 9 | HAND WHEEL ASSEMBLY | 1 | CAST IRON EPOXY PAINTED |
| 10 | LIMIT SWITCH | 2 | STANDARD |
| 11 | POSITION INDICATOR | 1 | BRASS/SS |
| 12 | INDICATOR SCALE | 1 | SS |
| 13 | SOLENOID VALVE | 1 | STANDARD |
| 14 | AIR TUBING | 1 | STEEL / SS |
