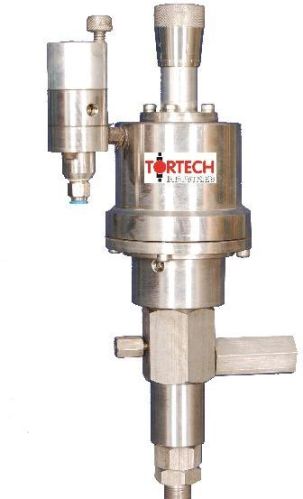

Pneumatically Operated Chemical Injection Dosing Pump.

Backed by the team of our experienced professionals, we have been able to manufacture, trade and supply an extensive range of pneumatically operated chemical injection dosing pump. This pump is widely used in different industrial applications for injecting the chemicals. Offered pump is manufactured by our trained professionals using quality approved components with the help of modern technology. The provided pump is available in different specifications as per the demands of the clients.
Dosing pump feature:
reciprocating type plunger pump
operation of pump with compressed air or natural gas
plunger ceramic coated, plunger ss 316, ceramic plunger
flow control by stroke rate with stroke timer device and stroke length variation with an accurate micro meter type stroke length setting device
flow turn down ratio of 100 : 1 (together by stroke rate and stroke length adjustment)
accuracy â± 2% or better â± 1%
easy operation minimum working parts, field maintainable of pump
pressure amplification ratio 1 : 30
maximum pressure 105 kgcm2
input gas air supply 2 to 5 kgcm2
maximum pressure adjustment by cut off control of input airgas supply from air filter regulator assembly
inbuilt filter regulator assembly and flow calibration pot
moc of pump ss 316, ss 304, or as per liquid parameters
standard components:
skid frame with suction discharge
y strainer
ball valve
none return valve
calibration pot
airgas supply air filter
air filter pressure gauge
dosing pump
pressure relief valve
discharge pressure gauge
line check valve
measuring liquid point needle valve
