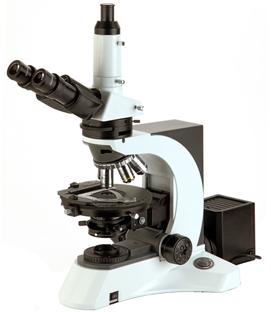

Polarizing Microscope

We are offering polarizing microscope.
Description:
supply high quality and contrast image with special strain free objective.
Single polarization, othorgonal polarization and conoscopic observationon.
Transmitted light and reflect light, 24v100w long life halogen lamp.
Stage with 45 degrees located, attachable mechanical stage with large moving range, high efficiency by no interference when turning objectives.
Professional polarizing microscope for geology, petroleum, chemicals, polymer, led field.
specification
optical system: infinite optical system
viewing head: seidentopf trinocular head inclined at 30 degree, interpupillary 48-75mm
eyepiece: ew10x22 plan eyepiece ew10x22plan eyepiece with scale of crosshair, plan eyepiece with cross, plan eyepiece with gridding
strain-free plan achromatic objective: 4x,10x, 40x, 100x
nosepiece: backward quintuple nosepiece, center adjustable
analyzer: 360 degree dial rotation minimum scale reading: 0.1 degree (vernier scale)
conoscopic observation attachment: switch between orthoscopic and conoscopic observation, bertrand lens position adjustable
optical compensator: first-order red plate, guarter-wave plate, quartz wedge
polarizing rotatable stage: diameter 170mm, center adjustment, 360 degree scale, minimum division 1 degree, minimum reading 6 by means of vernier scale, 45 degree click stop knob
condenser: strain-free swing condenser na0.90.25
focusing: coaxial coarse & fine adjustment, range 32mm, fine division 0.001mm, coarse stroke 37.7mm perrotation, fine stroke 0.1mm per rotation
polarizer 360 degree rotatable 0 degree position adjustable
illumination: 24v100w halogen lamp, brightness adjustable
filter: blue filter diameter 45mm.
