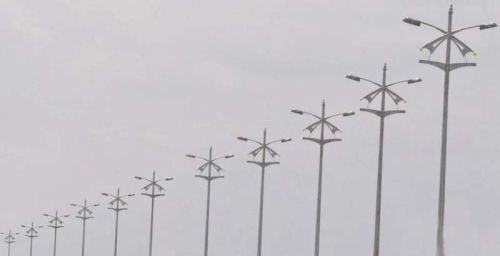

Polished Metal Octagonal Pole, For Road Lights, Technics : Hot Dip Galvanized

JINDAL presents wide range of Octagonal Pole, for primary use as street lighting poles. Products are fabricated using premium quality raw material and are customized to client’s specification. The Poles are manufactured from tapered polygonal or circular sections, which are slipped together at site and so maintenance of close tolerances and straightness are trust areas. They come ready as flange- plated, galvanized and custom designed. Use of high-strength sheet steel and can produce single - piece poles up to a length of 14 meters. The two shell halves are welded together with advanced systems and with automatic sigma machines. Galvanized through single dip process at the company’s in house sophisticated galvanizing facilities, and guarantees great corrosion resistance. X-ray, ultrasound, and surface crack inspections ensure top material quality and help maximize the life of poles and masts.
Special Features

• Martial for H/M Section : Hot Rolled MS Plate/Strip as per 5986/ BSEN 10025/ Equivalent, Minimum Yield Strength is 355 MPs & Minimum Ultimate Strength is 510 MPa with maximum Sulphur and Phosphorous percentage of 0.05
• Foundation bolt : High Tensile Steel having UTS of Gr Fe- 415 MPa min
• Material for Base Plate : Hot Rolled MS plate as per IS 2062 Gr Fe – 410
• Wire Rope : S/S wire rope having 7/19 construction with a grade of AISI 316
• Material Protection : Hot dip galvanized as per IS 4759/ BSEN- 1461 on both internally & externally by seven  tank process.
