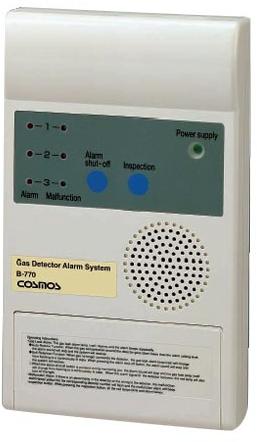

Online Gas Detection System (B-770), Feature : Durable, Hard Structure, Industry Proven Design, Less Maintenance

MaterialAluminium
FinishingPolished
Power0-100W, 100-200W, 400-800W
FeatureDurable, Hard Structure, Industry Proven Design, Less Maintenance, Rust Proof
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location India only

Product Details

Number Of FlowerGas Detection Systems
MaterialAluminium
Country of Origin0-12VDC
FinishingPolished
Power0-100W, 100-200W, 400-800W
FeatureDurable, Hard Structure, Industry Proven Design, Less Maintenance, Rust Proof
Coverage Area2-4ft, 4-8ft, 8-10ft

Detected gas	LP gas \| Natural gas
No. of connectable detectors	KD-5G, KD-5T,GD-1B,GD-3L \| KD-5M
Alarm Type	Flashing red lamp (illuminated after alarm shut off), alarm sound, auto- restore type(can be set to self- retention function using DIP switch)
Alarm volume	70dB/m min.
Alarm shut off	By pressing a button
Malfunction display	Flashing yellow lamp
Display of alarm unit operation	Illuminated green lamp
Power source	AC100V to AC220V, 50/60Hz (Terminal block type)
Power consumption	Approx. 5W when monitoring (maximum) Approx. 10 W during alarm (maximum)
External output	2-stage voltage(DC6V when monitoring, DC12V during alarm, 0V during error) AC100V to Ac220V during alarm, 1A max. output(35- second output delay with DIP switch) 1a, 1b contacts AC220V,1A max, or Dc24V, 1A max(35-second output delay, can be changed to immediate output with DIP switch)
Operating Temperature Range	-10^o to 40^oC
Dimensions / Weight	W138 x H230 x D45 mm / Approx. 480 g
Accessories	Inspection gas, Mounting plate, Wood screws, Crimp terminals, hex wrench
