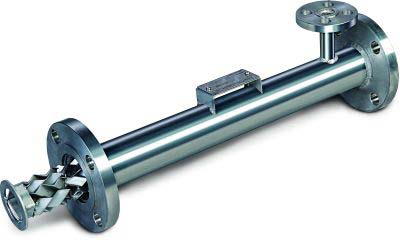

Static Mixers are a series of geometric mixing elements fixed within a pipe which use the flow stream to create mixing between two or more fluids. Static Mixers are used to mix liquid-liquid, liquid-gas and gas-gas. Finepac Structures study mixing application & accordingly design the efficient & fabricate the static mixer.

Features :

• The device consists of mixer elements contained in a cylindrical or squared housing and element consist of series of Multidirectional channels
• Material of Construction in :
  • Ss316
  • Ss304
  • Special Alloy Exotic Metal
  • PTFE lining



Advantages :

• No needs of Tanks, agitator etc
• Available in very compact size
• No moving parts
• Low pressure dry
• Shorter in length

Static Mixer is used in different mixing tasks like :

• Blending : Two Soluble components are mixed together to achieve homogeneity
• Dispersing : Two insoluble components are mixed together to achieve required droplet size and Mass transfer

Parameter for Designing Mixer :

• Flow Rate of each component to be mixed
• Viscosities, surface tension and specific gravity
• Viscosity important parameter in mixer designing. Viscosity ratio of various streams is most important for mixing efficiency

Typical Examples :

• Mixing of reactants in nitration plant
• Waste water treatment plant & sugar industry
• Chemical & Petrochemical industries, Drug formation, Unit : mixing of ingredients
• Air/Ammonia gas mixing in case of nitric acid plant
• Water Heating
• Mixing of Petroleum Components
• Diluting Concentration & Mixing Flavoring
